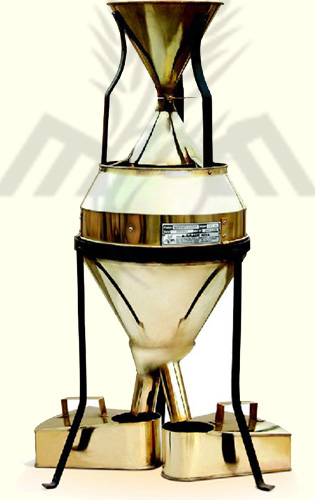

Boerner Divider (As per IS Specifications)
(Model No. STE-01)
|
_s.jpg)
|
Specification:
| Over all Size |
38"x17"x43"(H xWxD) |
| No. of Pockets |
38 |
| Hopper Capacity |
1 kg. |
Material
. |
Body and Inner parts are made of either copper or brass |
Special Features:
- Provides Accurate splits of the grain samples with an accuracy of +/- 5% on a 1 kg sample.
|

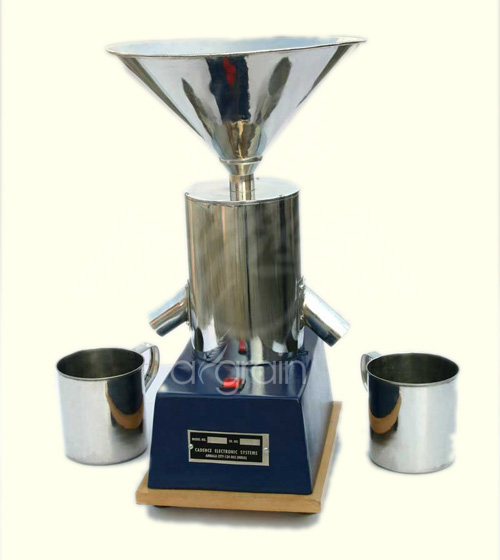

Precision Divider (Gamet Type)
(Model No. STE-02)
|
_s.jpg)
|
Specification:
| Size |
38"x31"x51"(HxWxD) |
| Hopper Capacity |
2 kg. |
| Electronic Motor |
0.5 H.P. single phase |
| Material |
Chrome plated Brass & Mild Steel |
| Principle |
Centrifugal Action, Motor Driven |
|
Riffle Divider
(Model No. STE-03A)
|
 _s.jpg)
|
Specification:
| Width of Chutes |
5 cms |
| Hopper Size |
49.5 x24cms |
| No. of Pans |
4 |
| Material |
Painted Mild Steel Or Stainless Steel |
| Special Feature |
Dividing or Halving Dry Material |
Riffle Divider
(Model No. STE-03B)
Specification:
| Width of Chutes |
1.2cms |
| Hopper Size |
28x17cms |
| No. of Pans |
4 |
| Material |
Painted Mild Steel Or Stainless Steel |
| Special Feature |
Dividing or Halving Dry Material |
|
